Fence poles.

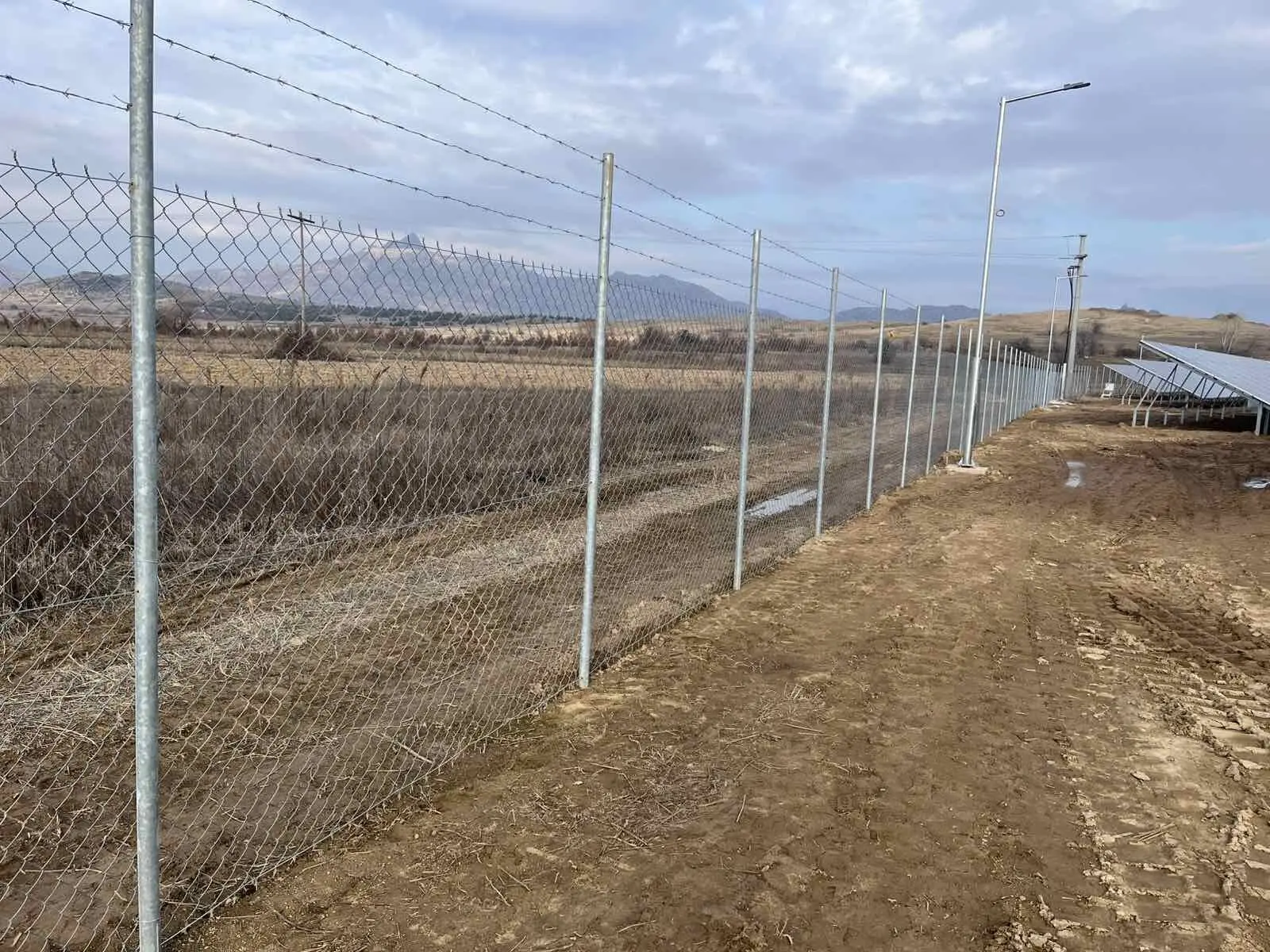

Hot-dip galvanized steel posts and corner braces for practical, long-lasting perimeter protection around solar installations.
Advanced Solar · Perimeter protection
Secure the perimeter.

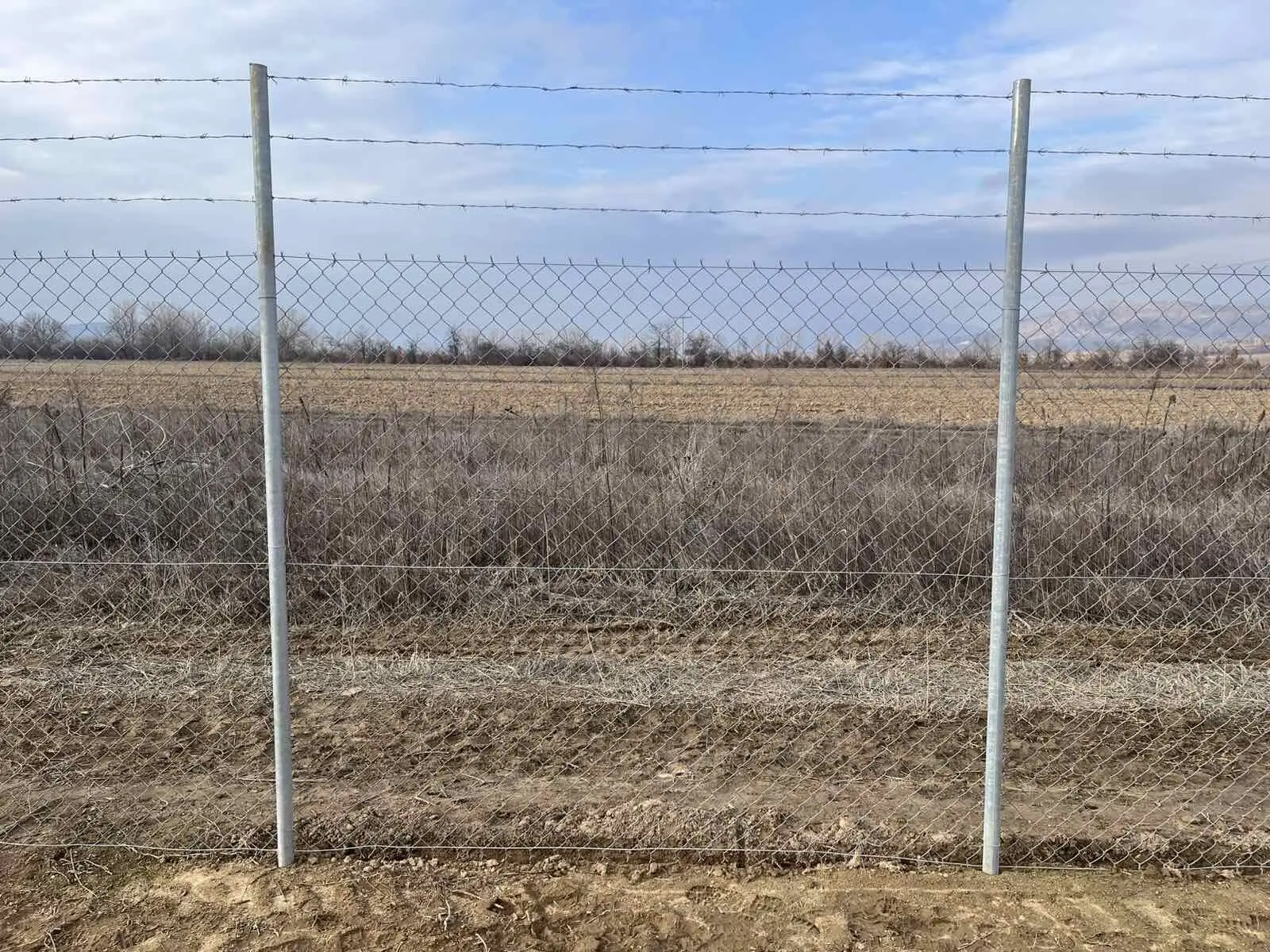

Manufactured from hot-rolled steel tube, our range supports concrete foundations and direct-ground installation. Posts are available with or without barbed-wire installation holes, with custom requirements supported.
| Tube outside diameter | 48.3 mm |
|---|---|
| Wall thickness | 2 mm |
| Concrete-foundation post | 3,000 mm · 5–7 holes |
| Direct-ground post | 3,600 mm · 5–7 holes |
| Corner reinforcement | 2,400 mm · 1 hole |
| Material | Hot-rolled steel tube |
| Surface protection | Hot-dip galvanizing |
| Installation options | Prepared concrete foundations Direct embedding / pile driving |
| Customisation | Hole arrangement and project requirements |
EUR.1 certificates can be arranged for this product for EU exports. Read about export documentation.
Dimensions refer to the standard published range. Foundation design and installation suitability depend on site conditions.
Concrete foundation
The 3,000 mm post is designed for installation in a prepared concrete foundation.
Direct ground installation
The 3,600 mm post supports direct embedding and pile-driven installation.

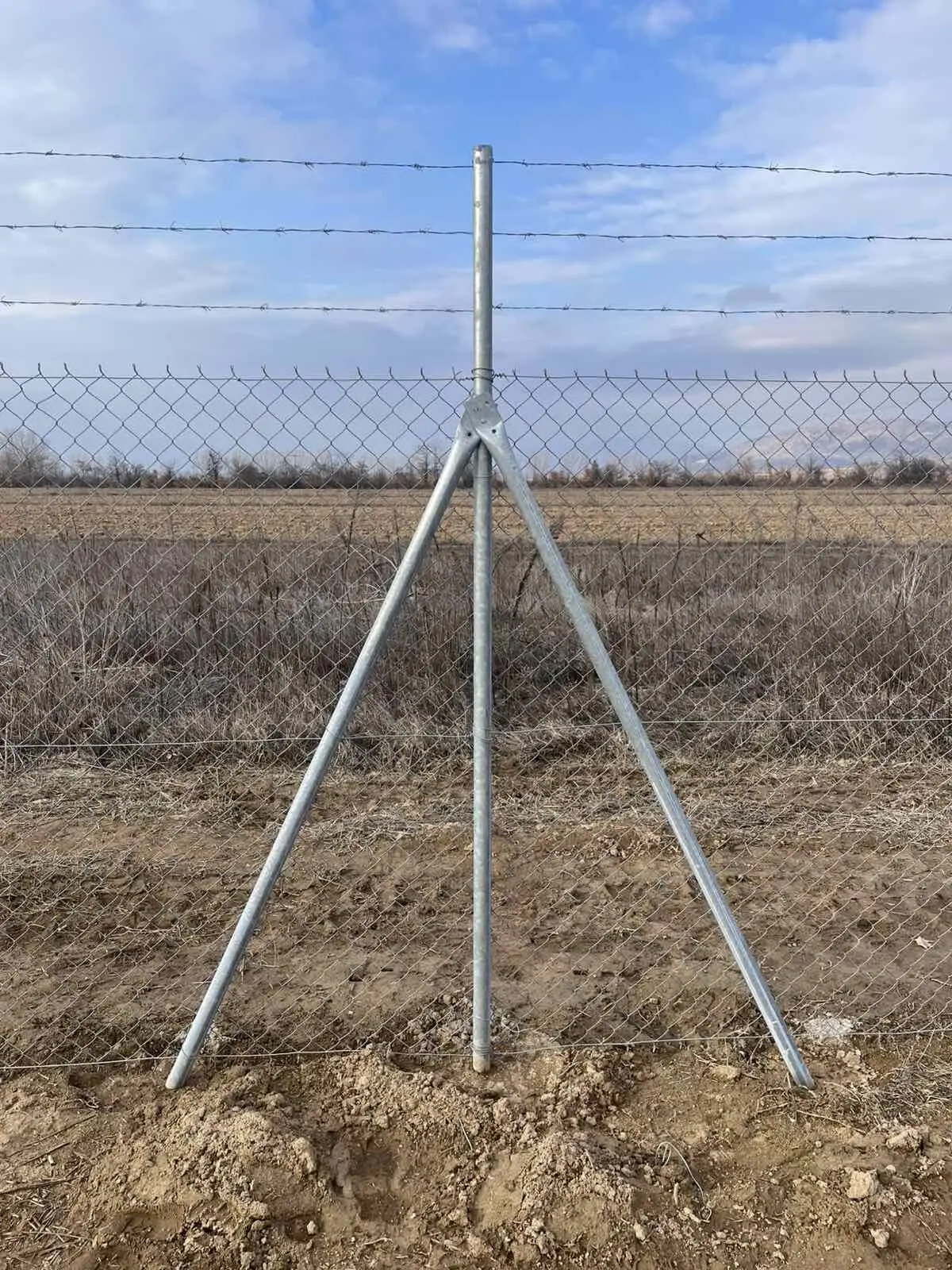

Corner reinforcement
A 2,400 mm brace reinforces corners and supports the integrity of the fence line.
